Excavator Bucket

Excavator Heavy Duty Bucket

Large bucket capacity, and large open area. Diamond folded top section for greater structural strength. Overlapping plate reduces stresses in critical areas.

Product Specification:
  • Material : Alloy,High-strength alloy
  • Code : Q355b,NM360,HARDOX-500
  • Hardness:163-187,360,470-500 :
  • Extension : 21%,16%,8%
  • Bend Intensity(N/mm2) : 355,1020,1300
  • Drag and extension intensity(N/mm2) : 470-660,1200
inquiry now
Product Details

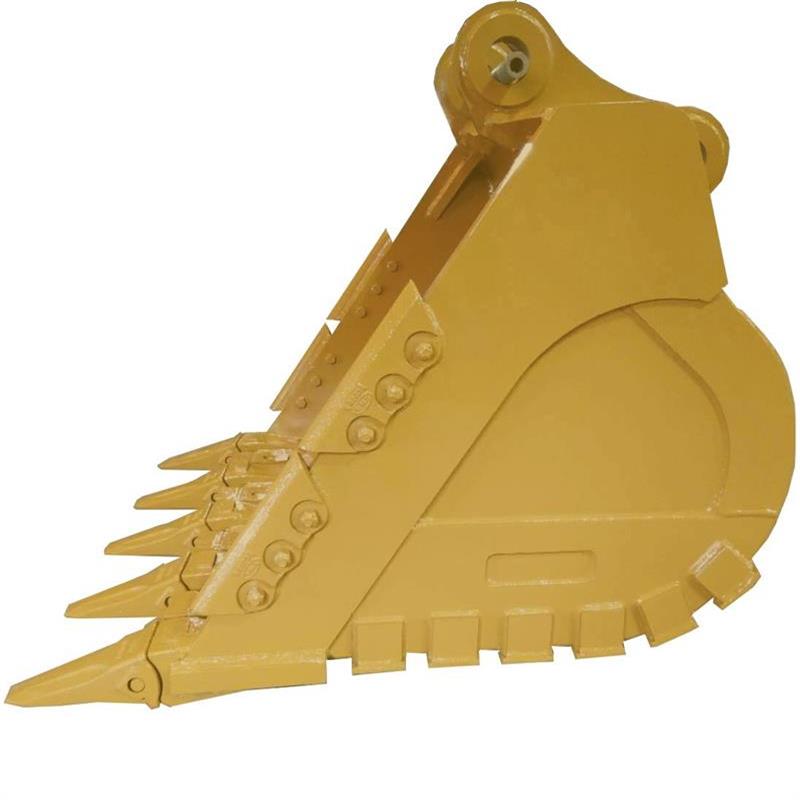

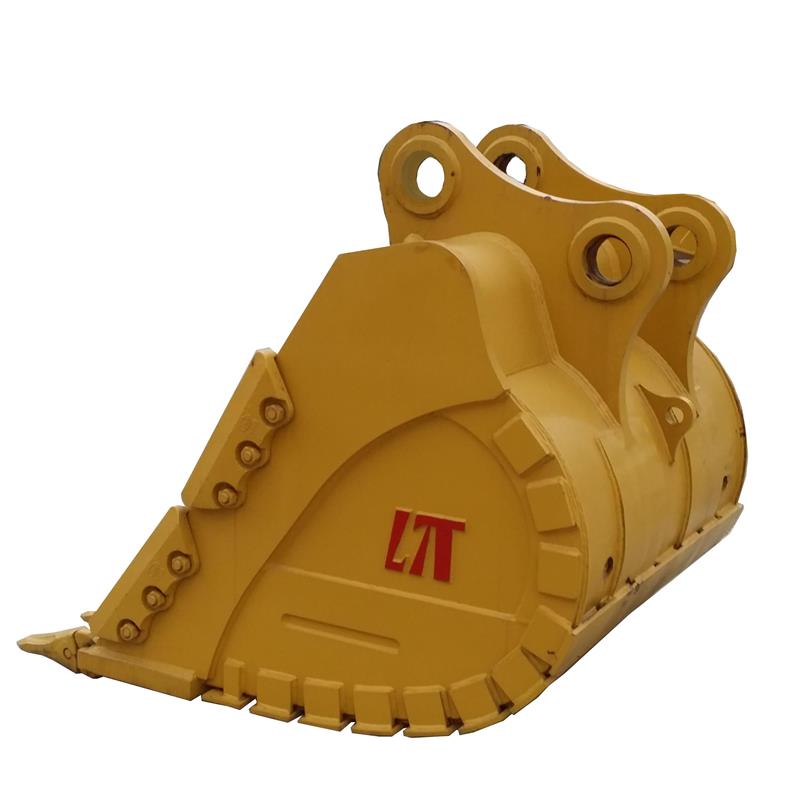

Huitong Excavator Heavy Duty Bucket



Production Description

The Excavator Heavy Duty bucket is made of 16Mn steel, Chinese Q355b, with thicker plate and wearable parts( Bottom reinforced plates, side guard board, segments between bucket teeth. etc. ). It is available in a wide range of capacity and shape, according to customers' request. Our recommended application includes: volume loading for packed ground, tough clay, loose dirt and some mixture of rock (relevently harsh working condition).



Advantages

1. Thickening plate and wear part;

2. Delta or straight cutting edge;

3. Bolt-on or welded Segments between teeth(Optional);

4. Lateral bolt-on or welded protectors ;

5. Internal wear package made by strips, bended plate, or double layer plate;

6. External wear protection by heel shroud, chocky bar, wear button, double layer plate;

7. Homologated hook;


8. Buckets can be connected with either direct fit or quick coupling.



Difference among General Purpose Bucket, Heavy Duty Bucket and Severe Duty Bucket



HT Bucket Series Specification
Bucket Series Description/Application Features
General Purpose Bucket HT GP Bucket are made light and aim for boosting your working efficiency.

Recommended used for digging clay, loading sand and gravel, volume loading for packed ground, tough clay, loose dirt and some other light works
1. Light weight
2. Relative tough material (16MN/Q355)
3. Large capacity
4. Boosting working efficiency
Heavy Duty Bucket HT HD Bucket are designed to survive in the harsh working conditions.


Recommended applications: abrasive soils, compact or dense clay, loose rock and gravel
1. Heavy duty with bottom wear plate
2. Vertical shrouds added
3. Thickening plate
4. Optional weld-on lip shrounds
Severe Duty Bucket (Rock Bucket) HT SD Bucket (Rock Bucket) are the toughest series. Our SD Bucket are designed not only to survive but also to thrive the harsh working conditions that you faced.

Recommended applications: shot rocks, Stratified Materials, Quarry, dense clay, etc.
1. Using Q355 for the body + Hardox
400/500/NM360 for all the wearable plate
2. Vertical shrounds added
3. Thickening plate
4. Weld-on lip shrounds added
5. Corner heel shrounds
6. Bottom wear strips added

Specification
Specification For Bucket Size
GP/HD BUCKET
Capacity(m³) 0.8 1 1.2 1.5 1.8 2 2.5 3 4 5 7
Length(") 42.5 46.5 46.5 51.2 51.2 53.1 59.1 66 67.3 73.6 82.7
Width(") 39.4 45.3 49.2 51.9 59.8 59.8 61 62.2 66.9 70.9 89.4
High(") 27.6 29.9 31.5 33.9 35.8 38.6 40.9 44.5 53.1 57.9 57.9
Teeth(Optional) PC200 PC200 PC200 PC300 PC400 PC400 PC400 PC650 PC650 PC650 PC1000
Lip(") 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6



Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Heavy Duty Bucket.

Excavator Heavy Duty Bucket Material

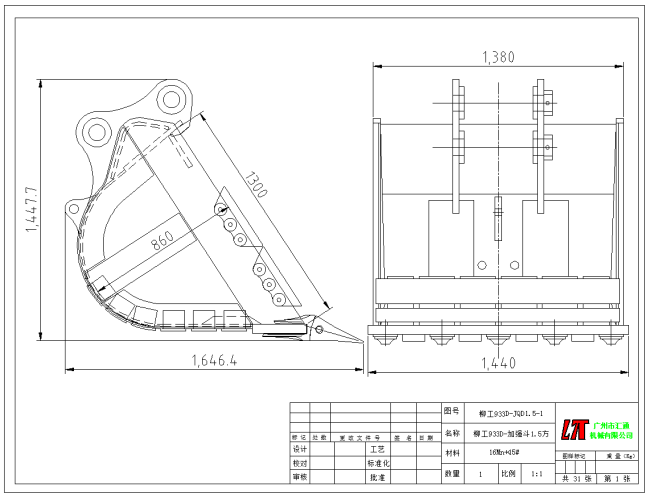

General Arrangement Drawing





Excavator Heavy Duty Bucket GA Drawing

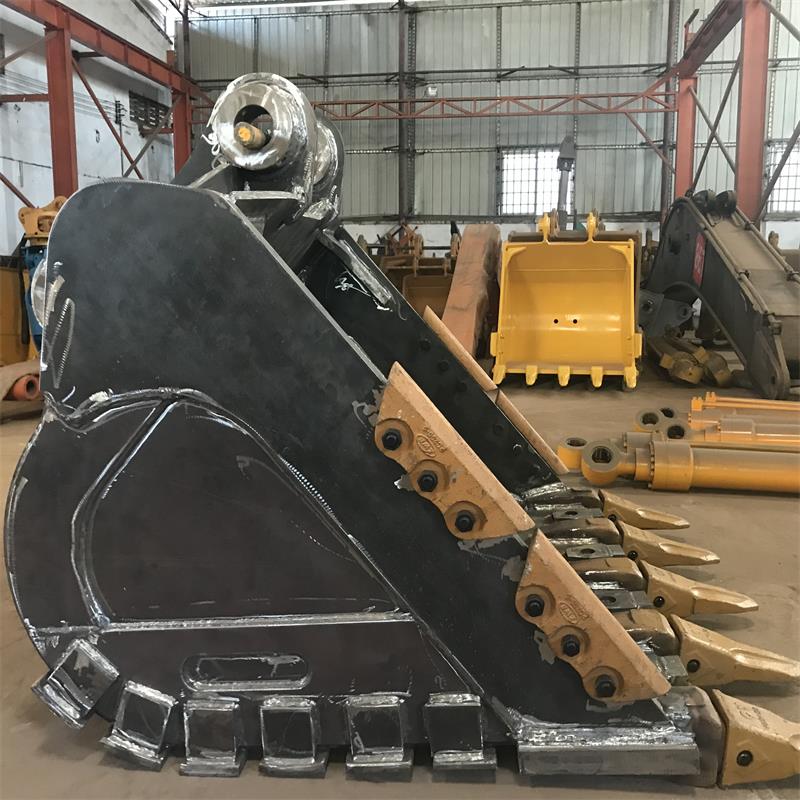

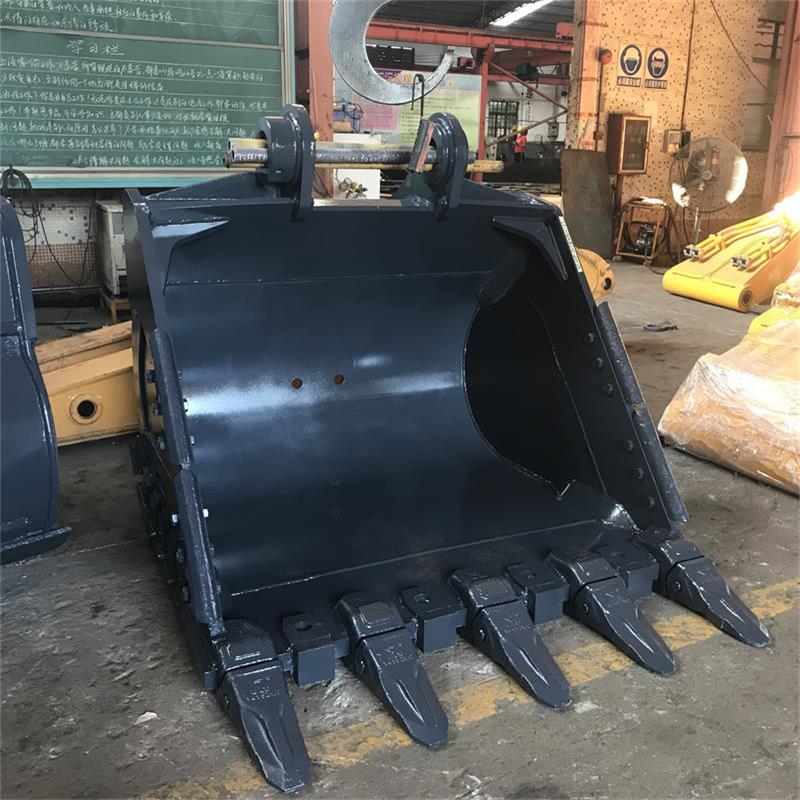

Processing at Huitong Wrokshop

Excavator Heavy Duty Bucket Processing at Huitong Workshop

Excavator Heavy Duty Bucket Processing at Huitong factory



Certification

Excavator Heavy Duty Bucket Certification

Certification For Excavator Heavy Duty Bucket



Customer Service



1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers;



2. An experienced tech-team is ready to meet your special requirements;



3. Your inquire related to our products or price will be replied in 24 hrs;



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available;



5. Online techinical supports are available for the whole product life( Oversea technical supports are also available).



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet;





2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity;





3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight.


Excavator HD Bucket packing


FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.




6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
