Excavator Attachments

Excavator Hydraulic Shear

HT Hydraulic Shear equipment offers a variety of sizes for percise fitting onto machines ranging approximately 30,000 to 240,000 pounds.

Product Specification:
  • a : Pull hook design front and rear to rip stumps out of the ground or roll them over for a better cutting angle.
  • b : 2" thick high tensile steel blade with flow-thru cutting blade stops.
  • c : 2" reinforced gusset on the blade.
  • :
inquiry now
Product Details

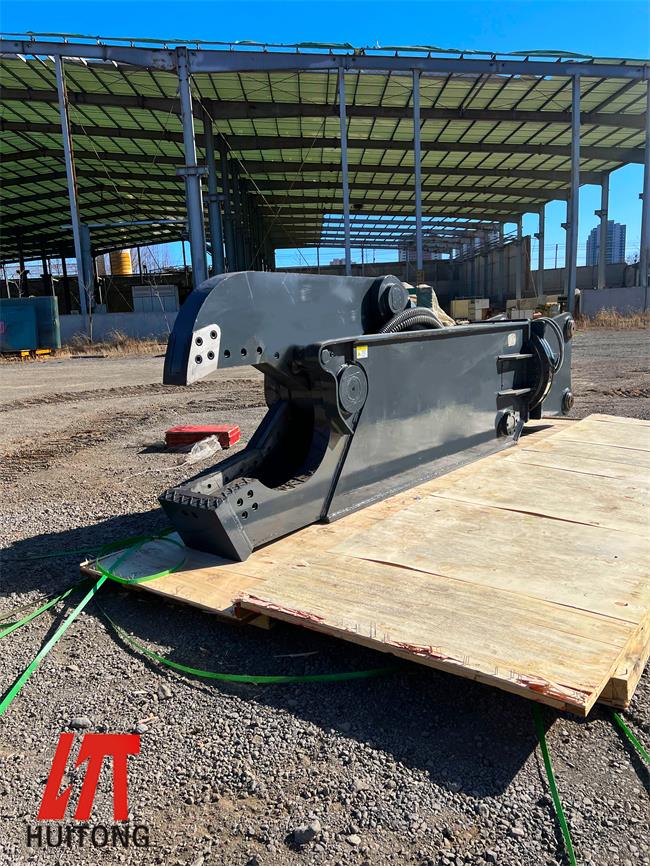

Excavator Hydraulic Shear



Production Description



Hydraulic shear, also known as eagle-shaped shear, is a device that could reach opening and closing by the jaw to achieve cutting.
Applied Size: It could be applied to all kinds of major brands of excavators from 1 to 50 tons.

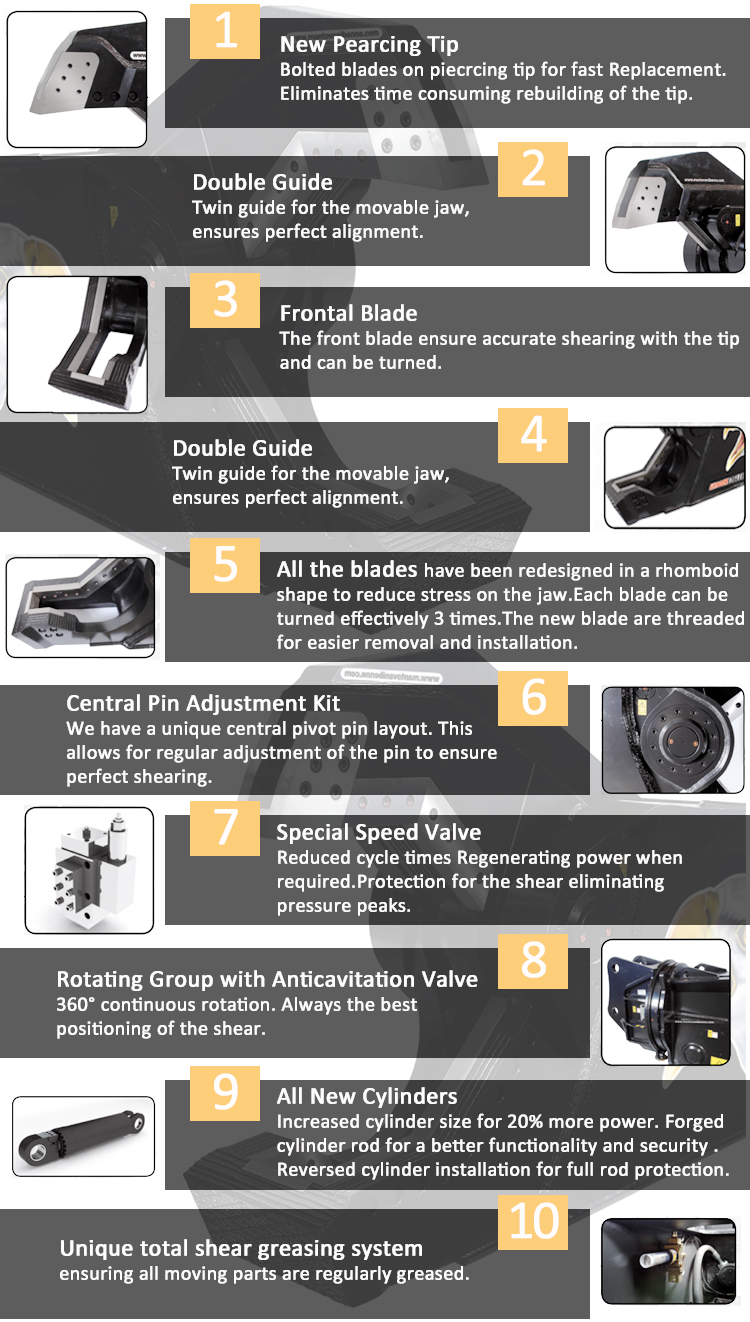

Characteristic :
The blade on the front side is not only with long service life for standing up some tough project, but it’s also replaceable for maintaining quick and efficient cutting as always.


Advantages Product Paramenters

1. Applied to handle H-beam, I-beam steel, ,automobile beam, workshop girder, especially suitable for heavy duty steel
cutting,which can reach maximum efficiency. 2. Up to 1500T cutting force, more powerful shear work.
3. Made of Hardox high strength steel,long durability.
4. Speed up valve installed, increasing productivity.
5. Can be applied to waste and used boat disassemble andscrap recycling.


General Arrangement Drawing



Excavator Hydraulic Shear



Product Paramenters





Item/Model
Unit
HTJ280
HTJ350
HTJ380
HTJ450
HTJ480
Arm Installation
ton
18-27
28-38
30-40
40-50
42-50
Boom Installation
ton
14-18
20-28
20-28
28-39
28-39
Weight
kg
2100
3000
3500
4500
4600
Maximum Opening with Jaw
mm
485
595
600
700
740
Overall Length
mm
2700
3200
3280
3700
3800
Operating Pressure
kg/cm2
250-300
300-320
320-350
320-350
320-350
Operating Flux
L/min
180-220
200-250
200-250
250-300
250-300



Material



Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing Hydraulic Concrete Pulverizer.

Material Code Related Chemical Composition Hardness(HB) Extension(%) Drag and extension intensity (N/mm2) Bend Intensity (N/mm2)
    C Si Mn P S
Alloy Q355B 0.18 0.55 1.4 0.03 0.03 163-187 21 470-660 355
Chinese High-Strength alloy NM360 0.2 0.3 1.3 0.02 0.006 360 16 1200 1020
High-Strength alloy HARDOX-500 0.2 0.7 1.7 0.025 0.01 470-500 8 1550 1300



Processing at Huitong Wrokshop



Excavator Hydraulic Stone Pulverizer Processing at Huitong Workshop

Excavator Hydraulic Stone Pulverizer Processing at Huitong factory

Certification

Excavator Hydraulic Stone Pulverizer Certification

Certification For Excavator Hydraulic Stone Pulverizer



Customer Service



1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers;



2. An experienced tech-team is ready to meet your special requirements;



3. Your inquire related to our products or price will be replied in 24 hrs;



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available;



5. Online techinical supports are available for the whole product life( Oversea technical supports are also available).



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet;





2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity;





3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight.



Excavator Hydraulic Stone Pulverizer packing



FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.





6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
