Excavator Attachments

Excavator Rotating Grapple

HT Grapple also called plum grapples, grasping forceps , hydraulic claws , grasping steel device. Both rotating and non-rotating types are available.

Product Specification:
  • Material : Q355b and Q690D
  • Application : Grabing wood, waste, tubes. etc.
  • Power : Hydraulic
  • Motor : Symmetrical double support
  • Warranty : 6 Month
inquiry now
Product Details

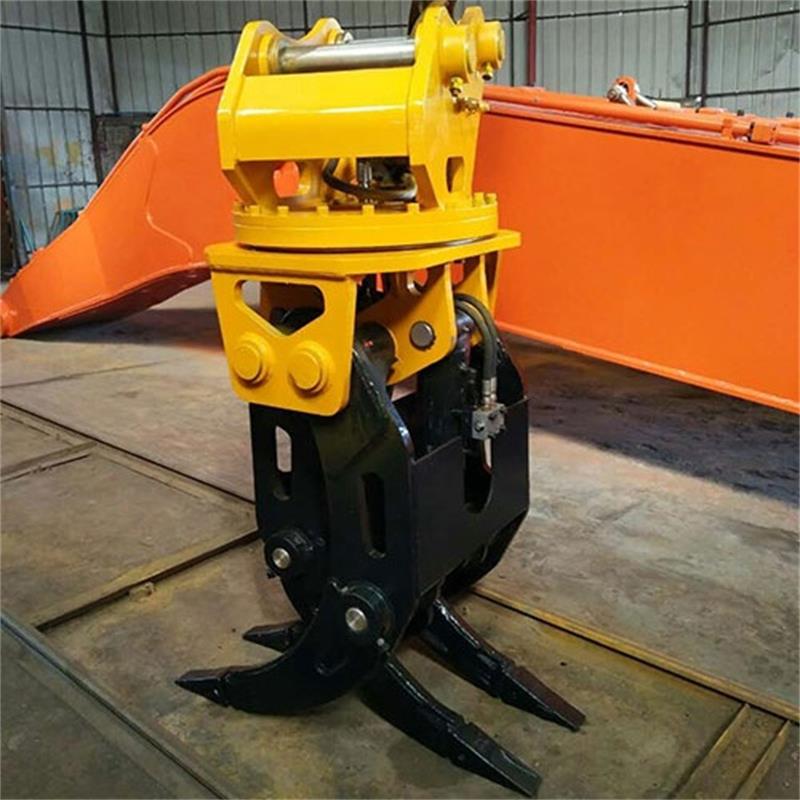

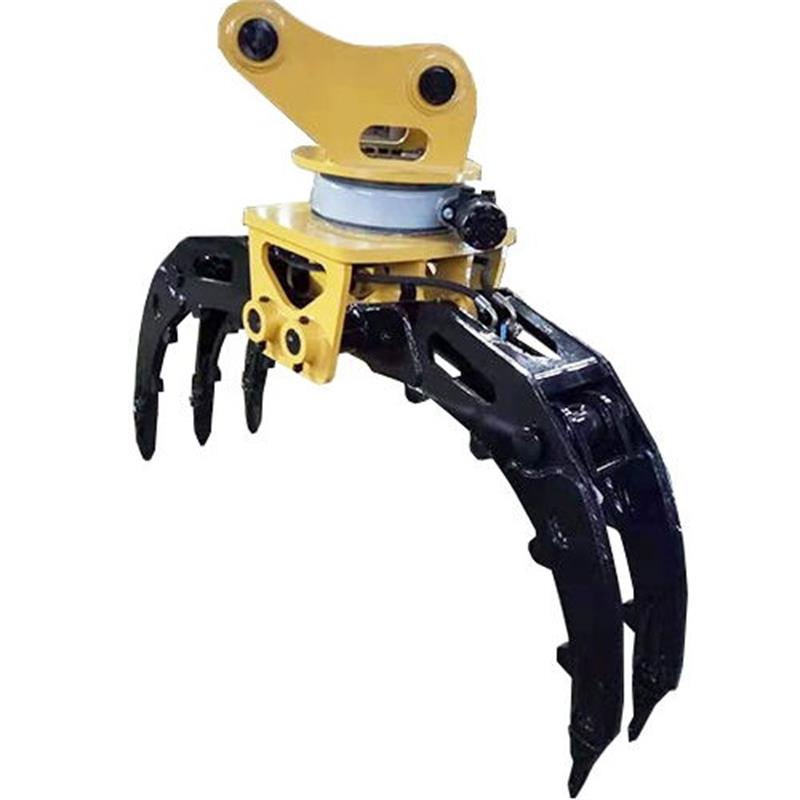

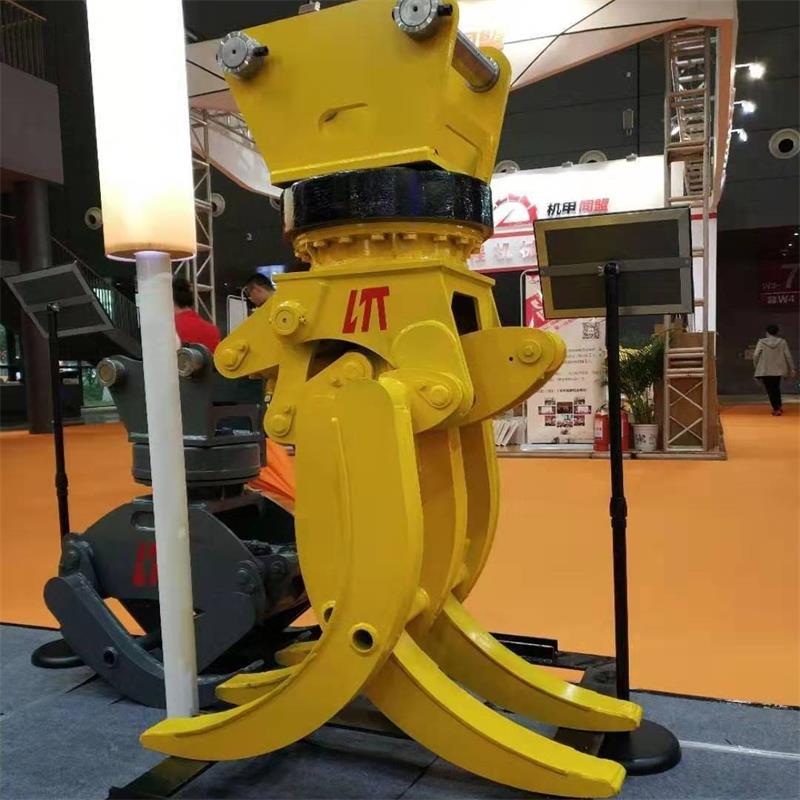

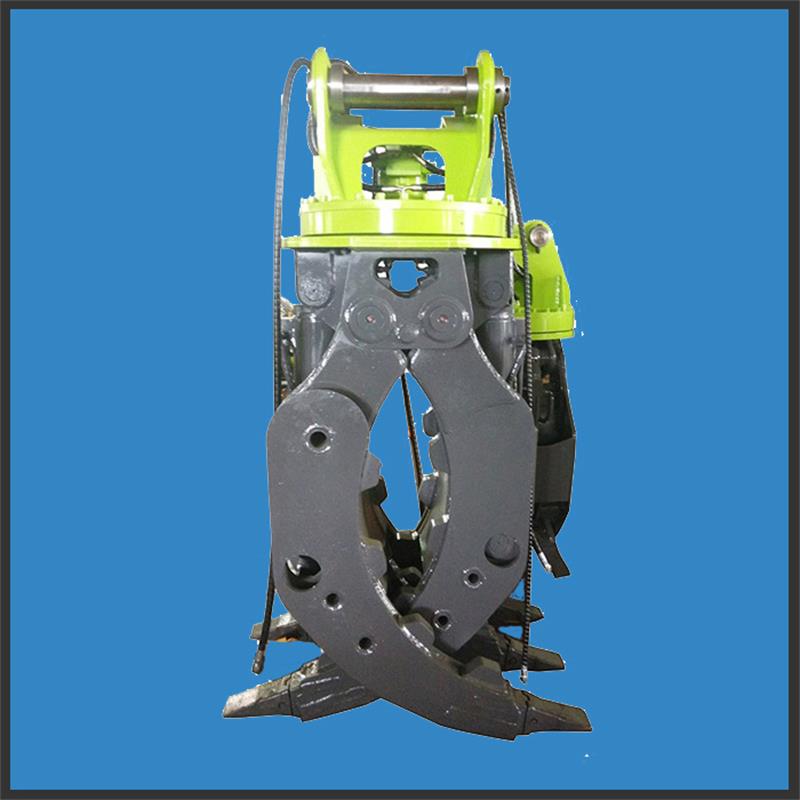

 Excavator Rotating Grapple



Production Description

HT Excavator Rotating Grapple, also called "Excavator Log Grab, Timber Grab", adopts Q690 High Strength Steel and advance rotating motor. 360-degree clockwise or anticlockwise rotation and the rotation speed can be controlled by operator, special rotary gears are used to prolong lifespan and lower the cost, fit for all operations where there need grappling and loading, such as stone, timber, waste, tube operations, garden and stone laying projects



Advantages

1. Material:

1) Entire jaw structure is manufactured of quenched and tempered Q690 High Strength alloy steel, 130,000-psi min. yield 360-440
BHN. Instead of traditional Q355b.
2) The tine tips are 175,000-psi min. yield 450-550 BHN. Chromium plating.



2. Motor:
1) Motor drive adopts the design of symmetrical double support,strong shcok resistance, avoiding axle breakage and oil leakage.
2) Pedestal adopts sealed type design, better protect the rotary drive.
3) Output Torque:4 kN.m-8.5kN.m(6272lbf.ft)
Holding Torque 38kN.m-105kN.m(78000lbf.ft)
Moment Torque 26kN.m-203kN.m(150,000lbf.ft)



3. Strengths:
1) Sealed type rotary drive solve the oil leakage problem, only required light greasing(80g of grease) once 6 months(unlike most
of the product on the market needed greasing everyday) and better protect the product.
2) Motor drive adopted symetrical double support design, reducing the bearing load and extend service life.
3) The jaw structure is manufactured of Q690 High Strength Alloy Steel, lighter weight with twice of the strength comparing with
Q345(normally used on the market)



Specification
Grapple
Machine Tonnage Description Max.Opening ranging(in) Weight(lbs) Material
6-10T Rotating/non-rotating 57.1 1430/1562 Q690+NM360
11-16T Rotating/non-rotating 66.9 1760/1914 Q690+NM360
17-20T Rotating/non-rotating 74.8 2134/2310 Q690+NM360
21-24T Rotating/non-rotating 80.7 2354/2530 Q690+NM360
25-30T Rotating/non-rotating 86.6 2640/2860 Q690+NM360
31-35T Rotating/non-rotating 90.6 3080/3344 Q690+NM360
36-40T Rotating/non-rotating 94.5 3630/3938 Q690+NM360
41-45T Rotating/non-rotating 98.4 4268/4620 Q690+NM360
65T Rotating/non-rotating 98.4 8140/9240 Q690+NM360



Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Rotating Grapple.

Excavator Rotating Grapple Material

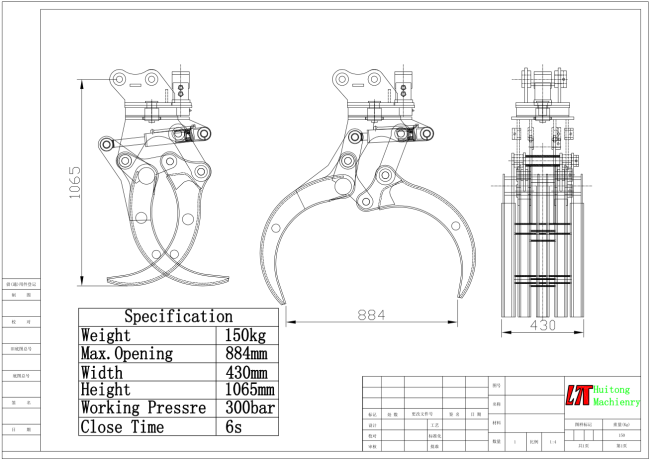

General Arrangement Drawing

Excavator Rotating Grapple General Arrangement Drawing





Processing at Huitong Wrokshop

Excavator Rotating Grapple Processing at Huitong Workshop

Excavator Rotating Grapple Processing at Huitong factory



Certification

Excavator Rotating Grapple Certification

Certification For Excavator Rotating Grapple



Customer Service



1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers;



2. An experienced tech-team is ready to meet your special requirements;



3. Your inquire related to our products or price will be replied in 24 hrs;



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available;



5. Online techinical supports are available for the whole product life( Oversea technical supports are also available).



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet;





2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity;





3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight.

Excavator Rotating Grapple packing


FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.




6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
