Excavator Bucket

Excavator Ditching Bucket

Ideal for ditch cleaning, grading and aggregate work. Drain holes are available for wet working enviornment. Different types of cutting edge is available.

Product Specification:
  • Application : Ditching cleaning, topsoil stripping. etc.
  • Material : Alloy Steel and High wear-resisting steel
  • Code : Q355B, NM360
  • Packing : Standard Packings
  • Suitable Excavator(ton) : 20-50
inquiry now
Product Details

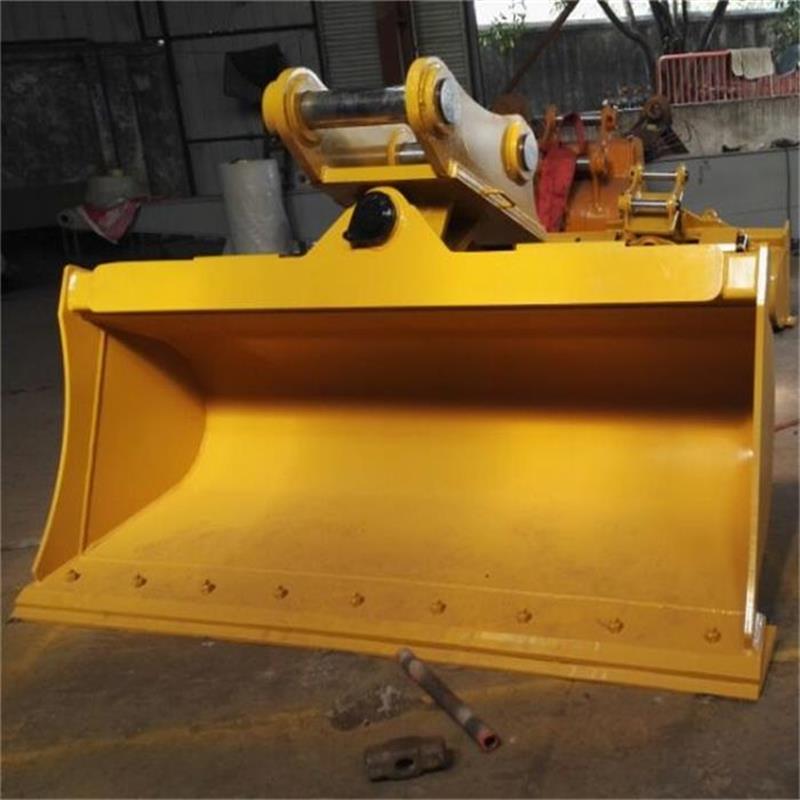

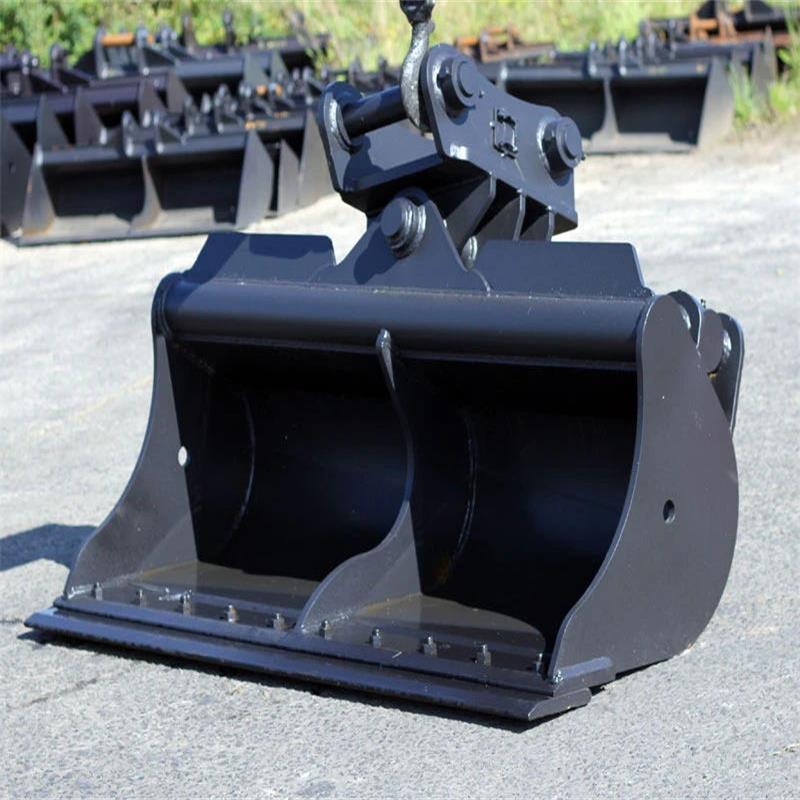

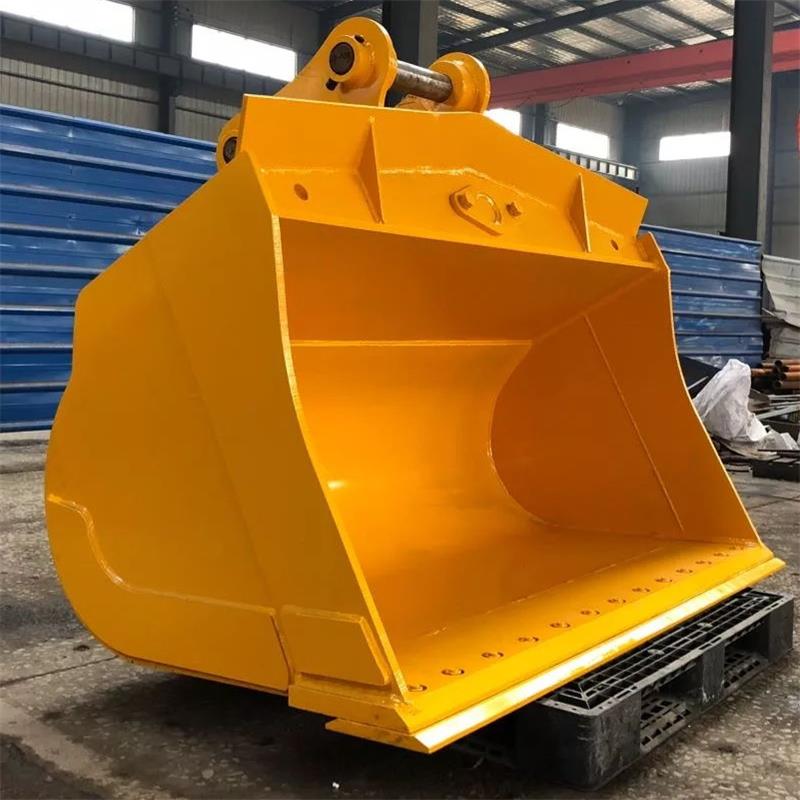

Huitong Excavator Ditching Bucket



Production Description





HT Excavator Ditching Bucket, also go by Grading Bucket, is available in a wide-range of widths and capacities. It's designed for work like landscaping, cleaning ditches, finishing and back filling, any high volume light material handling and mainly used in river regulation, disposal of liquid sludge waste. etc..

Recommendation used for topsoil stripping, small scale dozing, landscaping and leveling of fill.



Advantages

1. Cutting edge is reversible and replaceable



2. Comes with pre drilled for bolt-on cutting edge



3. High Fill Capacity. optimum performance.



4. Horizontal wear bars are optional



5. Cylinders, quick coupler are optional



Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Clamshell Bucket.



Material Code Related Chemical Composition Hardness(HB) Extension(%) Drag and extension intensity (N/mm2) Bend Intensity (N/mm2)
    C Si Mn P S
Alloy Steel Q355B 0.18 0.55 1.4 0.03 0.03 163-187 21 470-660 355
Chinese High-Strength alloy NM360 0.2 0.3 1.3 0.02 0.006 360 16 1200 1020
High-Strength alloy HARDOX-500 0.2 0.7 1.7 0.025 0.01 470-500 8 1550 1300

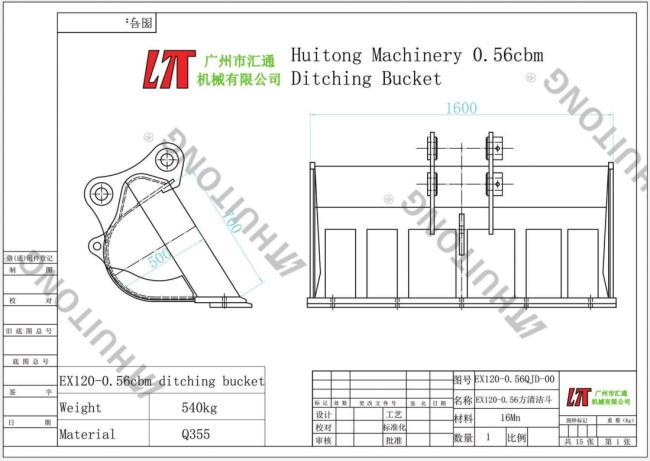

General Arrangement Drawing

Excavator Ditching Bucket General Arrangement Drawing

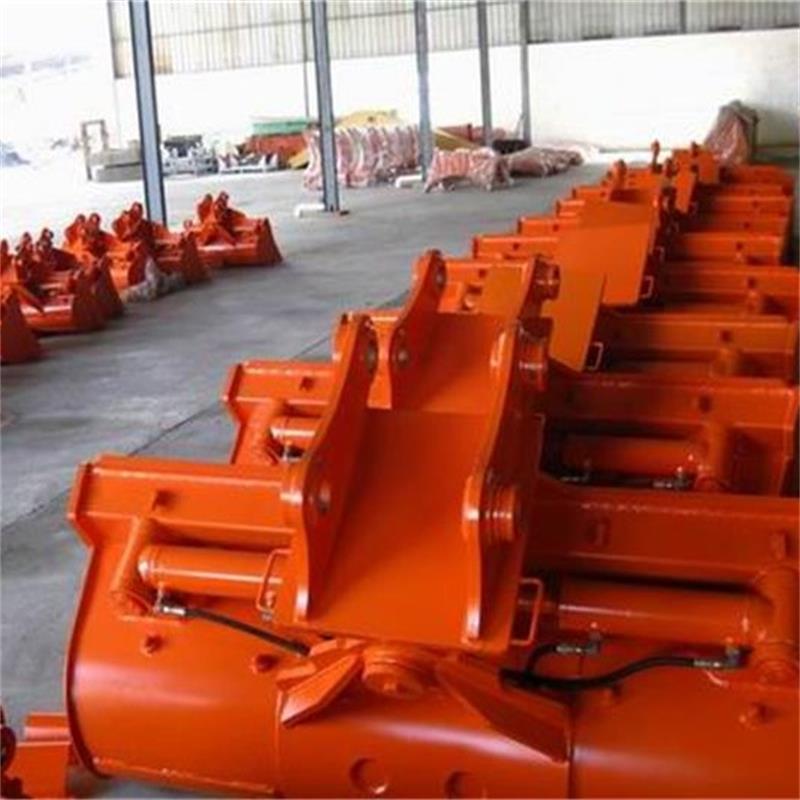

Processing at Huitong Wrokshop

Excavator Ditching Bucket Processing at Huitong Workshop

Excavator Ditching Bucket Processing at Huitong factory



Certification

Excavator Ditching Bucket Certification

Certification For Excavator Ditching Bucket



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet





2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity.





3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight


Excavator Ditching Bucket packing


FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.




6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.



Tag: Excavator Ditching Bucket, Grading Bucket, Ditch Cleaning Bucket
