Excavator Bucket

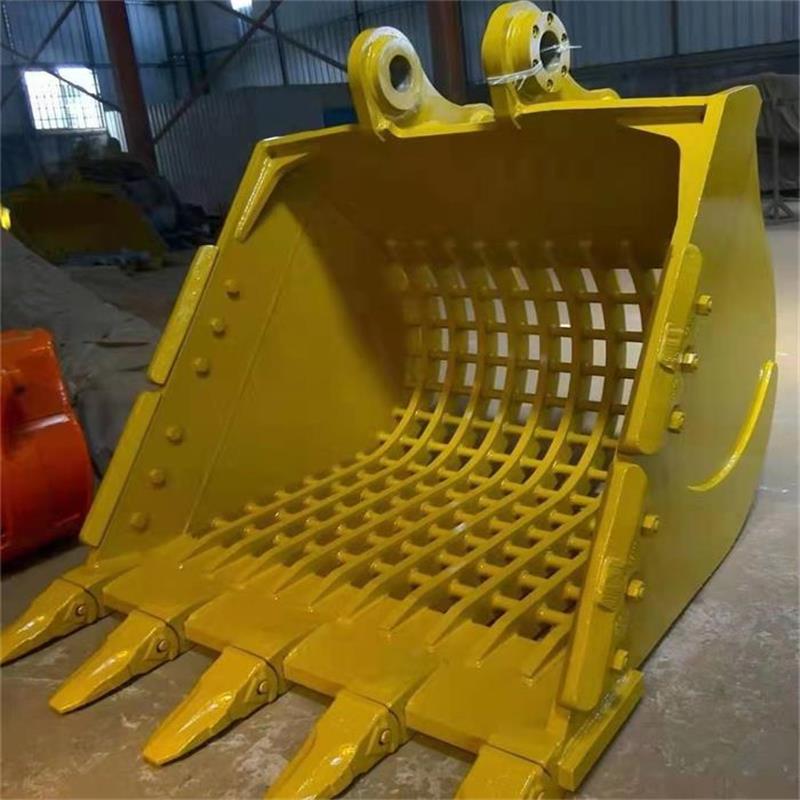

Excavator Skeleton Bucket

HT skeleton bucket is great for sifting out rocks in soil, effectively mining and sorting rock, and removing other debris without the soil.

Product Specification:
  • Material : Alloy,High-strength alloy
  • Code : Q355b,NM360,HARDOX-500
  • Hardness:163-187,360,470-500 :
  • Extension : 21%,16%,8%
  • Bend Intensity(N/mm2) : 355,1020,1300
  • Application : Removal of rock and debris without soil
inquiry now
Product Details

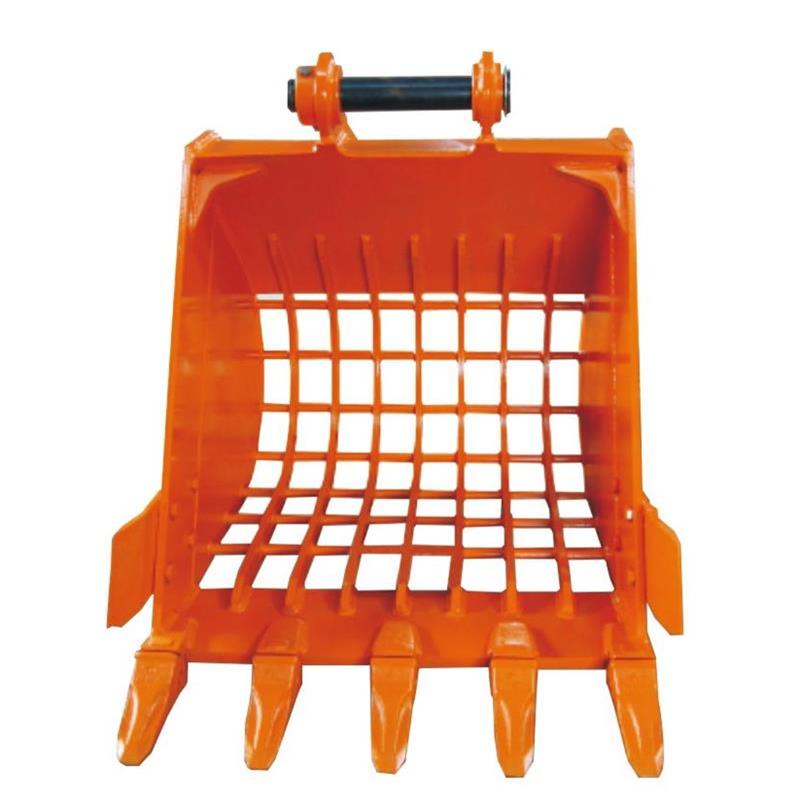

Huitong Excavator Skeleton Bucket



Production Application



The Primary Function of Huitong skeleton bucket is the removal of rock and debris without the soil. Other applications include the sorting rocks of a specific size from piles. Our skeleton buckets are designed to attack all varieties of applications from demolition to standard stock piles. The skeletal design is set to cater for smaller as well as larger objects to meet your needs.



Advantages

1. Bucket made for a primary selection of materials of various kinds, for reclamation and cleaning of land and for a pre-selection of the resulting material from a demolition. The “gaps” of the bars is determined according to the size of the required product.



2. All the bars are individually welded and fixed together with longitudinal round segments to ensure solidity of the structure.



3. Most size are available within 7 days (include Saturday and Sunday)



Specification
Specification For Bucket Size
Skeleton Bucket
Capacity(m³) 0.8 1 1.2 1.5 1.8 2 2.5 3 4 5 7
Length(") 42.5 46.5 46.5 51.2 51.2 53.1 59.1 66 67.3 73.6 82.7
Width(") 39.4 45.3 49.2 51.9 59.8 59.8 61 62.2 66.9 70.9 89.4
High(") 27.6 29.9 31.5 33.9 35.8 38.6 40.9 44.5 53.1 57.9 57.9
Teeth(Optional) PC200 PC200 PC200 PC300 PC400 PC400 PC400 PC650 PC650 PC650 PC1000
Lip(") 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6

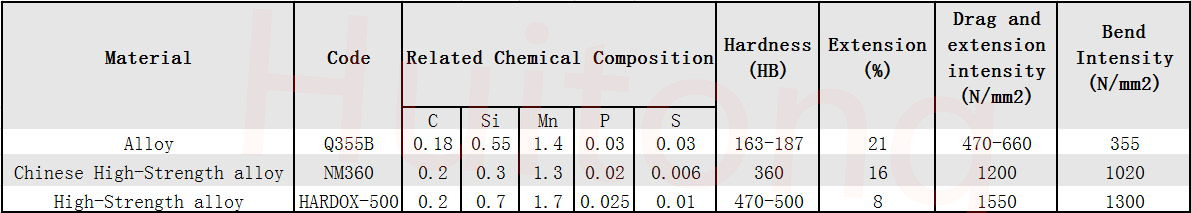

Material

Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Skeleton Bucket.

Excavator Skeleton Bucket Material

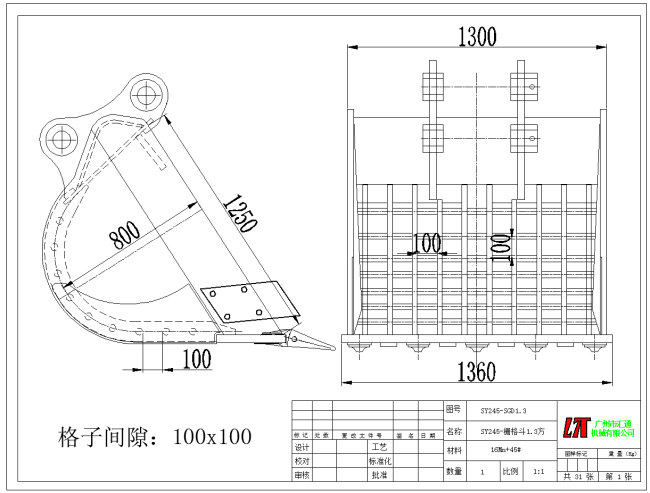

General Arrangement Drawing

Excavator Skeleton Bucket GA Drawing

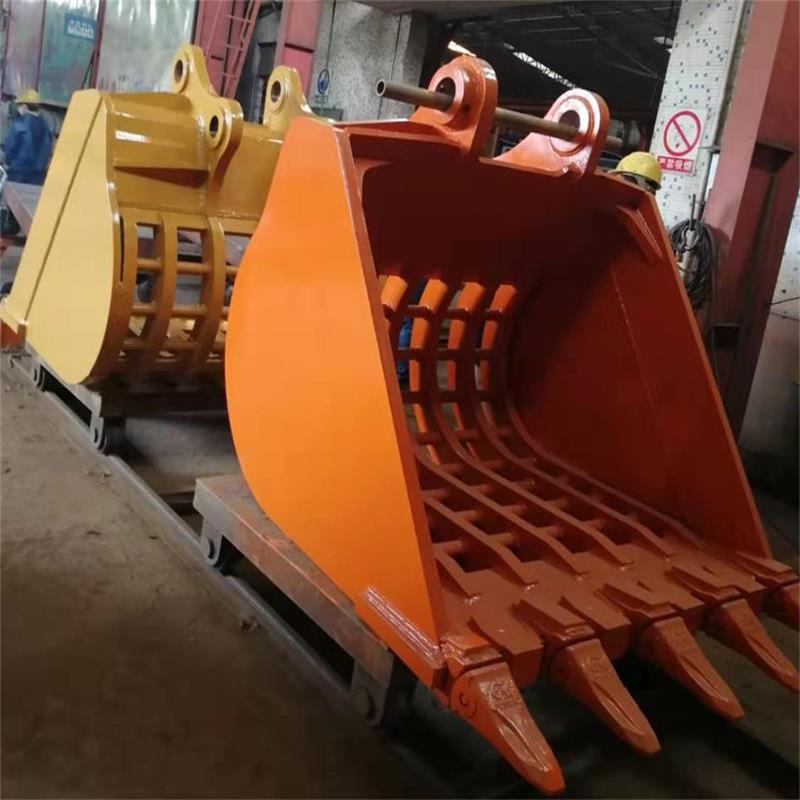

Processing at Huitong Wrokshop

Excavator Skeleton Bucket Processing at Huitong Workshop

Excavator Skeleton Bucket Processing at Huitong factory



Certification

Excavator Skeleton Bucket Certification

Certification For Excavator Skeleton Bucket



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet





2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity.





3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight


Excavator Skeleton Bucket packing


FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.




6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
