Excavator Attachments

Excavator Hydraulic Metal Cutting Shear

HT Excavator Hydraulic Metal Cutting Shear equipment offers a variety of sizes for percise fitting onto machines ranging approximately 30,000 to 240,000 pounds.

Product Specification:
  • 1.Raw material : Q355Mn steel
  • 2. Powerful hydraulic double cylinders built in , great cutting force :
  • 3.360degree endless rotary, more convenient for demolition work :
  • 4.Waved shape cutting blade for superior grip and control or ma :
inquiry now
Product Details

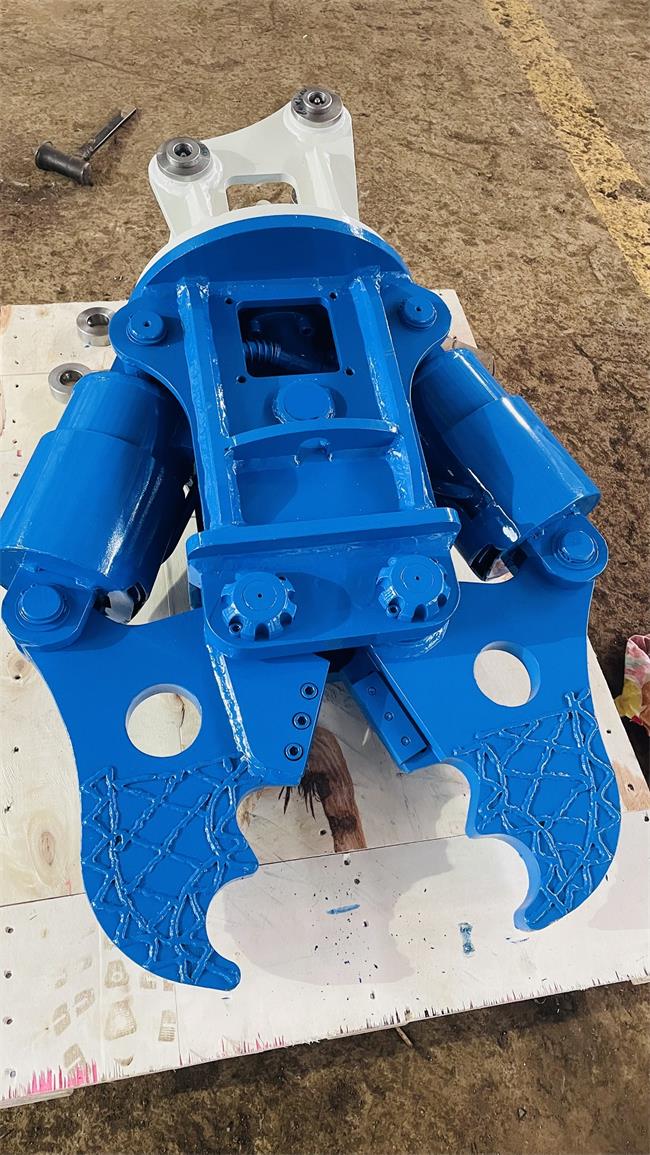

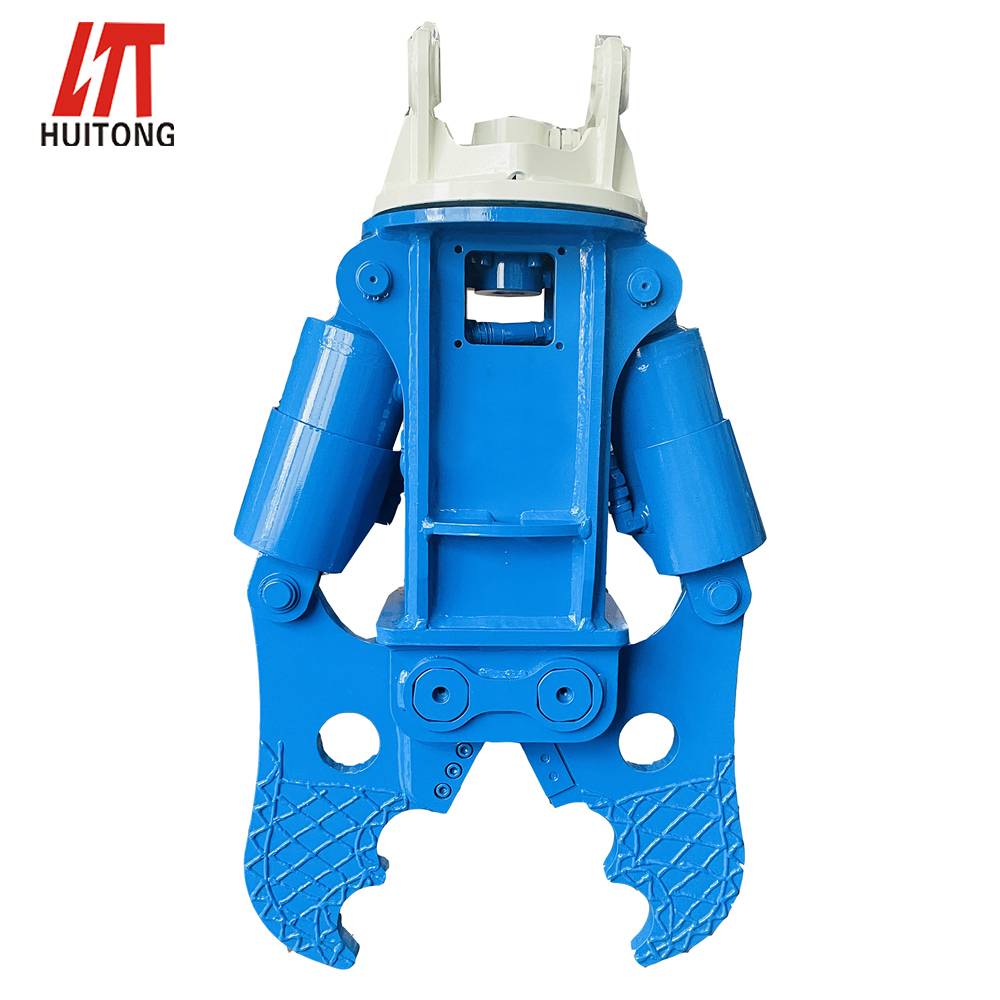

Excavator Hydraulic Metal Cutting Shear



Production Description



HUTONG Excavator Hydraulic Metal Cutting Shear is the perfect attachment for primary demolition, especially on high-reach excavators where there are reinforced concrete beams or columns.Our all-purpose dual-cylinder demolition shears can be used on any site, with advanced demolition Capabilities such as 360°rotation allowing for fast accurate and efficient positioning of the jaw.
This Demolition Attachment is also known as Hydraulic Concrete Cracker.

Advantages Product Paramenters



No

Item/Model

Unit

 HT04

HT06

HT08

HT10

1

Suitable Excavator

T

6-12

14~16

17~25

26~35

2

Weight

kg

650

910

1900

2200

3

Jaw Opening

mm

620

890

910

980

4

Blade Length

mm

145

160

190

190

5

Crushing Force

Ton

40

58

70

55-80

6

Cutting Force

Ton

90

115

130

154

7

Oil Flow

Lpm

110

160

220

240

8

Working Pressure

Mpa

25

30

30

30





Main Features



1.The pin shaft is made of 42CrMo alloy steel with built-in oil passage, with high strength and good toughness.

2.The rotary motor is imported from Switzerland, which can rotate at all angles.

3.Oil cylinder adopts honing tube and imported NOK oil seal, which has short working cycle and long service life.

4.The cutter block is made of wear-resistant alloy steel, which is resistant to high temperature and deformation.





Material



Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing Hydraulic Concrete Pulverizer.

Material Code Related Chemical Composition Hardness(HB) Extension(%) Drag and extension intensity (N/mm2) Bend Intensity (N/mm2)
    C Si Mn P S
Alloy Q355B 0.18 0.55 1.4 0.03 0.03 163-187 21 470-660 355
Chinese High-Strength alloy NM360 0.2 0.3 1.3 0.02 0.006 360 16 1200 1020
High-Strength alloy HARDOX-500 0.2 0.7 1.7 0.025 0.01 470-500 8 1550 1300



Processing at Huitong Wrokshop



Excavator Hydraulic Stone Pulverizer Processing at Huitong Workshop

Excavator Hydraulic Stone Pulverizer Processing at Huitong factory

Certification

Excavator Hydraulic Stone Pulverizer Certification

Certification For Excavator Hydraulic Stone Pulverizer



Customer Service



1. Before signing an official contract with our customers, we will help to analyze and provide professional solutions, recommdations based on the project information provided by customers;



2. An experienced tech-team is ready to meet your special requirements;



3. Your inquire related to our products or price will be replied in 24 hrs;



4. Keeping our customers update about the orders' production process and arrange quality checking in the workshop is available;



5. Online techinical supports are available for the whole product life( Oversea technical supports are also available).



Shipping&Packing



1. We pack the bucket by standard export wooden pallet and standard export wooden case which are Seaworthy, steel pallet;



2. Fast delivery time: 5-7days for small quantity, 15-30days for container quantity;



3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator buckets and parts, to help customer save ocean freight.



Excavator Hydraulic Stone Pulverizer packing



FAQ



1. ARE YOU A FACTORY OR TRADING COMPANY?

We are manufacturer based in Guangzhou, China where near to Hongkong. We've been in the industry since 2011, and we've gained the export certification, which means we could export with lower cost. Feel free to let our sales know ahead, if you planed for paying a visit to our factory. Also, you can know more about Huitong at the About Page.





2. DO YOU ACCPET OEM? WHAT'S YOUR MOQ? ANY EXPERIENCE FOR OEM?

We accept OEM for every product that we produce; There is no MOQ for any of our product if you wanted a OEM; We've been doing OEM ever since the year we established our factory, which is 2011. And also, we've got an mature technical team ready to discuss your unique requirements with you.





3. IS YOUR DELIVERY ALWAYS ON TIME?

We can't promise about the freight but what we can do is shortening our lead time while keep the same quality level. So there will not be any problem even if the sea freight delay for a couple days.





4. WHY DON'T YOU HAVE A CE CERTIFICATIONS?

Ce certification is for one product, not the whole factory, and we have way too many product lines to registered CE for, but our customers from Europe said it's easy to solve the CE problem. And we are working on the CE certifications registration process, in order to save our customers' time in the furture. By the way, there are many products with fake CE Certification on the market, please be awared with that to avoid unnecessary problems.





5. HOW AM I START ORDERING?

First, talk to our sales about your machine medel, working conditions, special needs, deadlines. Then, our sales will provide the details you need. All inquiry will be responed within 24 Hours.





6. CAN YOU KEEP ME UPDATE ABOUT MY ORDERS' PRODUCTION PROCESS?

Of course, unlike others who might hide their production process, our production process are totally open for our customers. Feel free to inform our sales about your needs.
