What fields are excavator vibrating hammers used in?

With the rapid development of the construction industry in recent years, the pile foundation has gradually developed from wood piles to reinforced concrete piles or steel piles. There has also been a huge development in the construction methods and construction machinery of the foundation.

The principle of excavator vibrating hammers technology is to generate up and down vibration through the relative motion of two eccentric gears, so that the object being acted on is separated from the surrounding soil layer, reducing frictional resistance and achieving the purpose of sinking and pulling. It has the characteristics of strong pouring force, good pile driving quality, sturdiness and durability, few failures, convenient use, strong power adaptability and low noise. Vibrating hammer is a kind of inertia vibrating hammer, which can be widely used in different soils, and its main function is to drive piles.

01Application range of excavator vibrating hammers

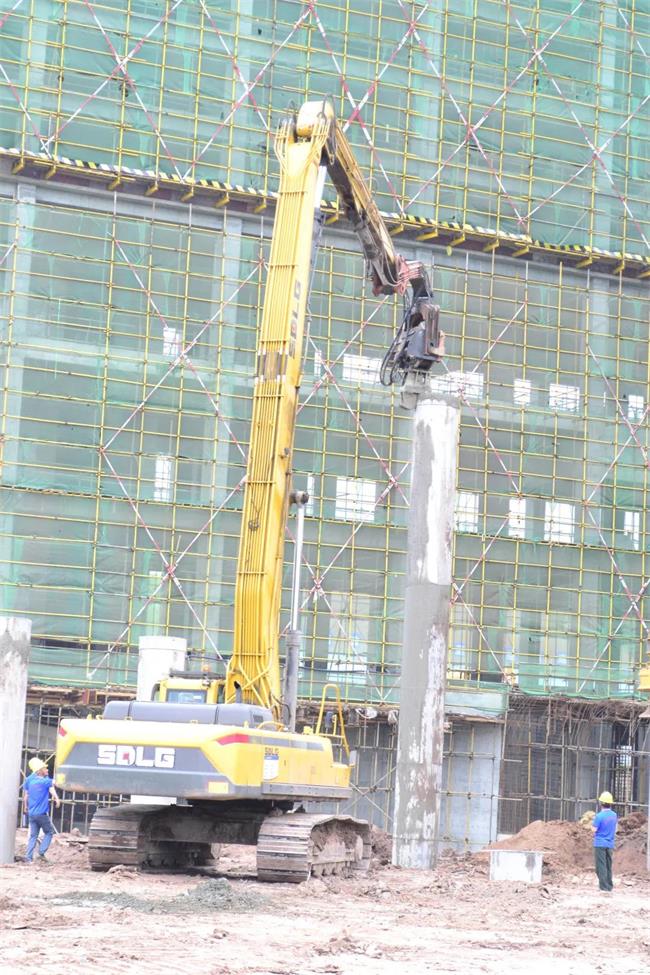

The excavator vibrating hammers is a pile foundation construction machine used in construction projects, which is used for the construction of concrete cast-in-place piles. After matching with the pile frame, it can sink concrete cast-in-place piles, concrete expanded bottom piles (garlic piles), lime piles, sand piles, and gravel piles; when equipped with pile clamps, it can sink and pull out concrete precast piles and various steel piles. It is a common equipment for infrastructure construction such as highways, bridges, airports, and buildings. In addition, the excavator vibrating hammers can also be used for piling of machinery such as vibrating pipe sinking pile machine and plate inserting machine.

02 Composition of excavator vibrating hammers

The excavator vibrating hammers includes a vibration absorber and a vibrator. The vibration absorber is composed of a lifting pulley, a beam, a vertical shaft and a vibration absorption frame. The vibration absorption frame is fixed on the upper part of the vibrator. Compression springs are inserted into a group, and the upper part of the vertical shaft is fixed with a beam.

The vibrator is composed of a motor, a box, an eccentric block, a driving shaft, a driven shaft, and a gear. The power is transmitted by the motor through a V-belt to the main and driven shafts in the box, which are meshed with a pair of cylindrical gears. There are four eccentric blocks. The lifting pulley of the product can be replaced by a lifting ring. Also includes electrical installations integrated with the electrical parts of the pile frame. The electrical installation of the product can also be configured individually.
